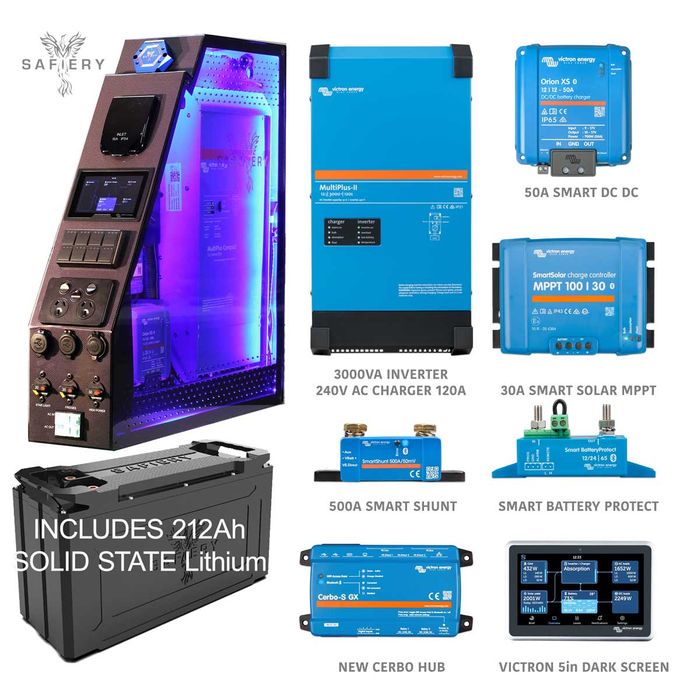

4WD Canopy Jupiter Power Pack Includes:

• Jupiter Stainless steel case Laser Welded Original stainless Finish 155 Wide x 560L (plus plugs) x 650 H (allow +/- 3mm)
• Front Facia Printed Wrap with labels choose from one of 4 designs. Custom Designs available at additional cost.
• 50A 12V DC DC Victron Orion XS capable of working with any alternator whether smart or otherwise.
• Victron Multiplus 12/2000VA Inverter Charger. Has auto-cutover from external power to battery operation. Charges at 1,000W (80A at 12V) and can overload by 30% for 30 mins when Inverter.
• Victron Cerbo-S GX is Smart Hub driving Display and directing CAN BMS from Lithium Batteries to charging sources for optimal performance.
• Victron Touch 50 Interactive Display
• Touch 50 Anodized panel mount for Touch 50 Display
• 2 x Max 9 magnetic controlled RCBO (highest quality)
• 240V 15A Power In Sockets Panel Mount
• GPO 240V Double Outlet
• Round Outlet USB Type A 2.4A
• Round Outlet USB Type C and Quick Charge
• Round Outlet Cig type female
• Smart Battery Protect 12V 65A
• Resettable Breaker 20A for STAR-light
• Resettable Breaker 60A for Compressor
• Resettable Breaker 20A for Fridges (2)
  (Note Jupiter can deliver up to 125A at 12V continuously)
• 3 Anderson Plugs at 50A rating for Compressor, Fridges and Solar Input
• STAR-light 10 Channel Digital Switching. 4 Channels positive and 6 channels negatively switched which suits majority of dimmable LED lights. Power limit is 10A on Positive and 10A on Negative Channels.
• STAR-switch water proof 8 button switch. Each button can switch dual colour channels (one press white, second press amber - same button) So 8 buttons can manage 10 channels.
• 10 x Wago 4mm inline connectors for lights and pumps and fridge
• NMEA connector to STAR-light from STAR-switch
• 2 x pre-made amphenol connectors to batteries
• 2 x Amphenol Male connectors (no cable) for connection to Alternator and Chassis ground)

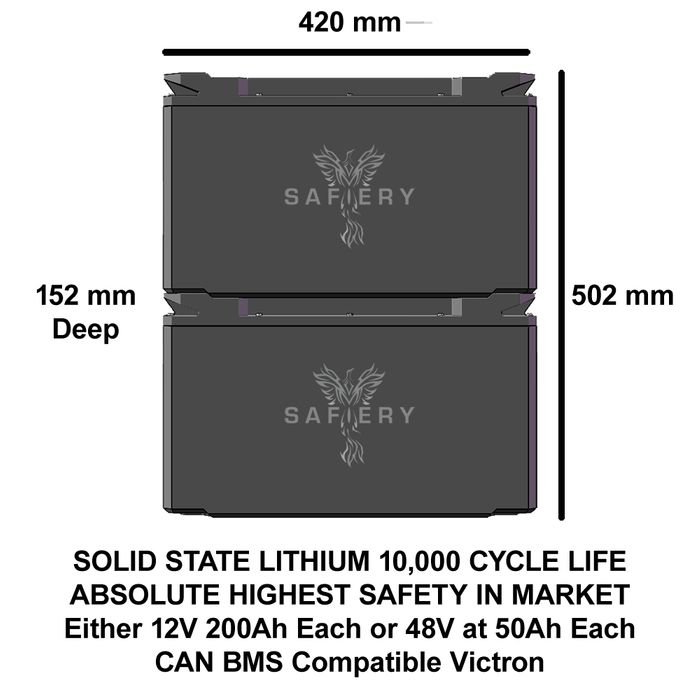

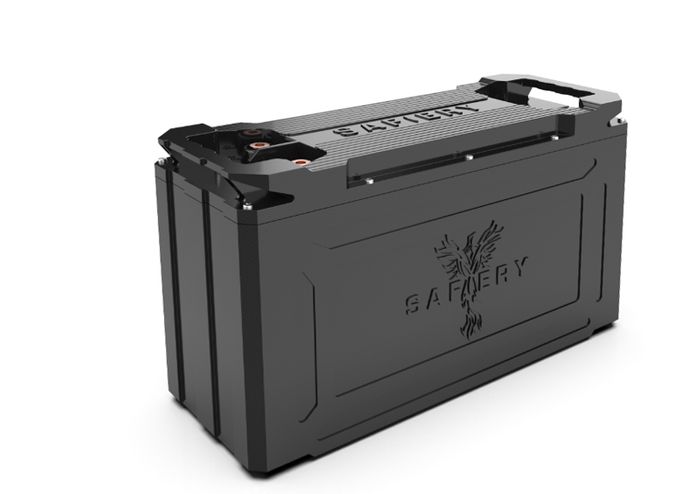

Not Included in Jupiter Package but compatible with Plug-n-play Design is the Safiery 200Ah CAN BMS Battery:
