P/N
015-2308

Item Name
MAMBA 9-6 TOYOTA 1HD-T/1HD-FT CT26 17201-17010 turbo Upgrade kit with compressor wheel + Turbine wheel + solid repair kit

Product Situation
Brand New
Compressor & turbine wheel Balanced by Schenck already
CHRA is recommend to be balanced again when you assemble them all.

Application
Bolt-On Replacement for TOYOTA 1HD-T/1HD-FT 4.2L Diesel CT26 17201-17010 & 17201-17030 Turbo.
Bolt-on replacement for TOYOTA 13BT 3.4L 17201-58010, 17201-58020.
Bolt-On Replacement for TOYOTA 3S-GTE ST165.
This upgrade kit goes with 6+6 billet wheel with smaller nose and larger blade that would get more air flow even it fit original cover.
9 blade high flow turbine wheel will reduce back pressure at top end that will allow more horsepower.
360Degree Solid performance thrust bearing kit with larger thrust bearing, collar and spacer will help turbo to support much more boost.

Compressor Wheel
6+6 2618 performance billet wheel
Inducer OD: 42.1/64.9/Overall Height 28.3/Nose OD 13.5

Turbine wheel
Exducer/Inducer OD : 52/68mm
9 blade high flow performance turbine wheel

Repair kit
Solid performance repair kit with forge steel thrust bearing kit with bigger thrust space and collar.

Kit Includes
1 x set

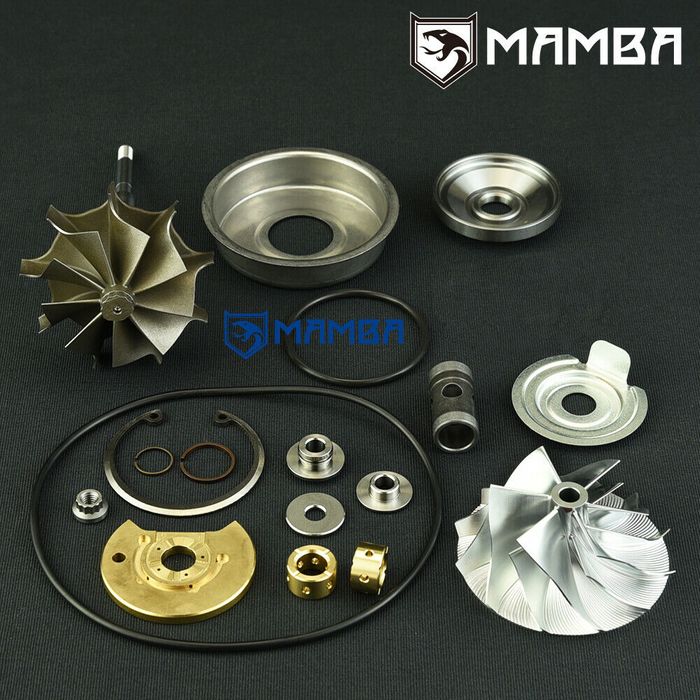

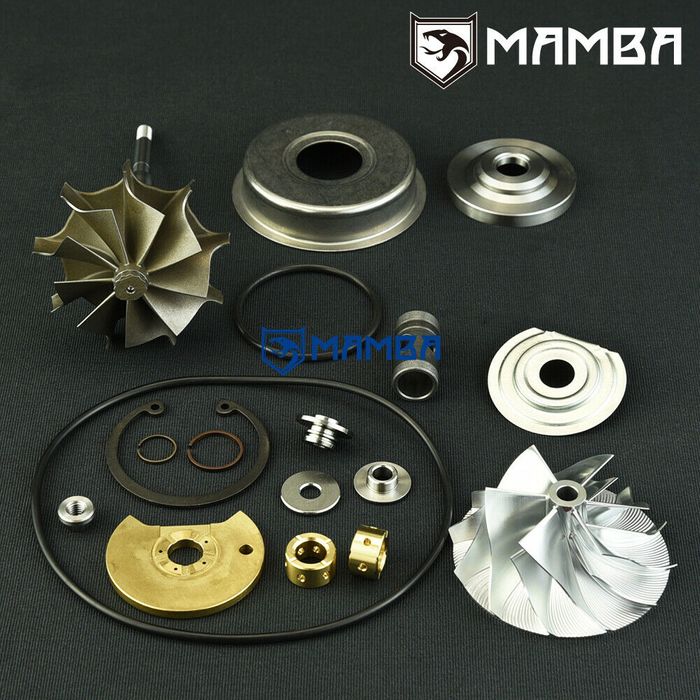

Everything shown on first picture is included
