P/N
089-0001

Item Name

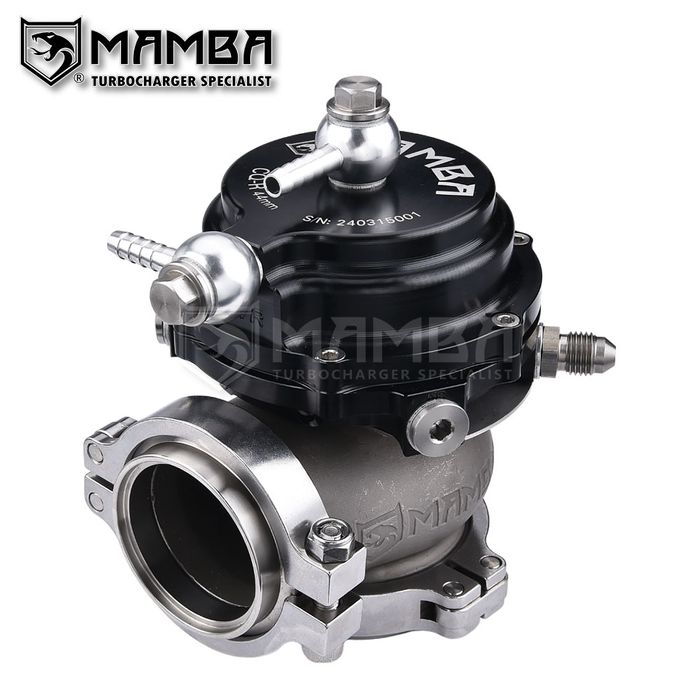

MAMBA CQ-R 44mm Water-Cooled Turbo External Wastegate

Product Situation
Brand new in box

Application
The MAMBA CQ-R 44mm external wastegate comes with -4AN water cooling port design to keep temperature down in extreme conditions.

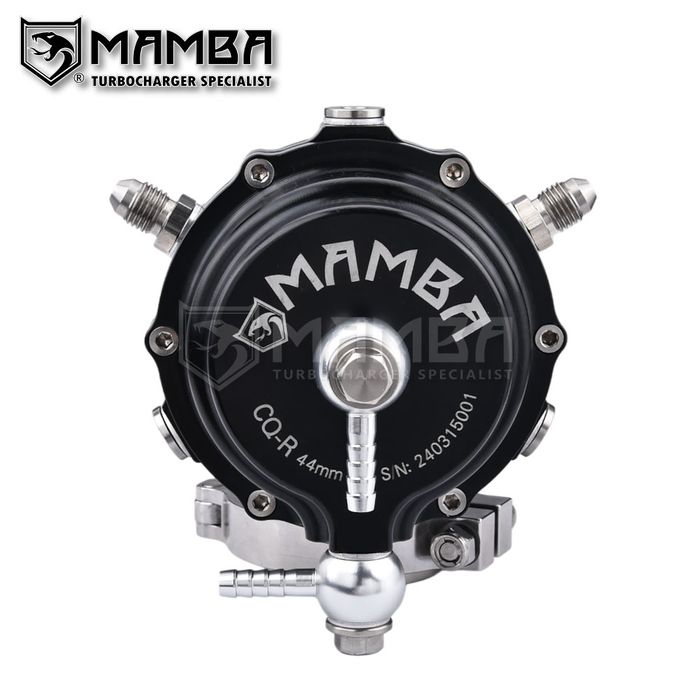

5 air ports are available for user to connect and install easily without rotating the top cover. Seal plugs are included for unused ports.
10 stainless steel springs for boost control from 0~2bar.
High temp alloy is used for valve and SUS304 Stainless steel housing, V-band flange will offer longer product life.
Reinforced high temperature silicon diaphragm.
Note:
External wastegate still works without water cooling.

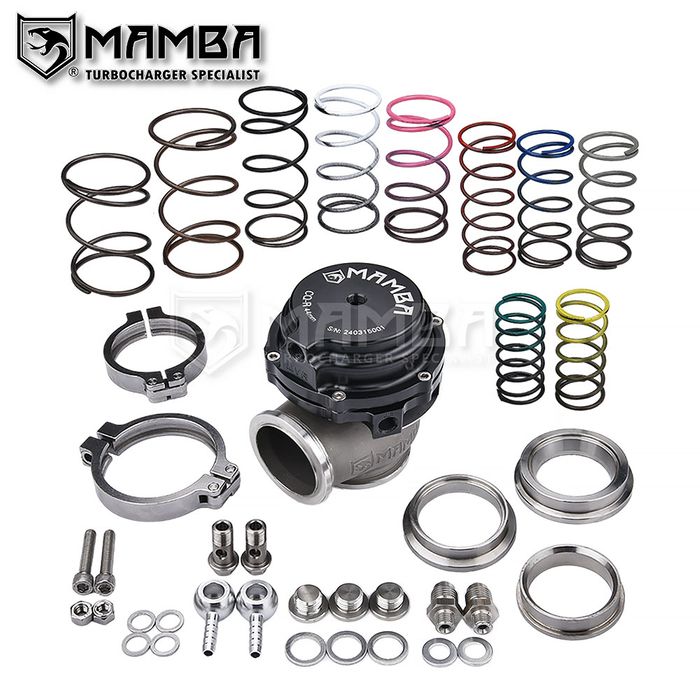

Kit Includes
1 x MAMBA CO-R 44mm assy.
10 x Spring
1 x SUS304 Inlet V-band flange & clamp set
1 x SUS304 outlet V-band flange & clamp set
2 x SUS304 banjo bolt kit (Fits top air ports, T6 aluminum banjo adapter)
2 x SUS304 -4AN adapter kit (Fits lower air ports)
3 x SUS304 seal plug
Everything shown in first picture is included.
