P/N
007-1212

Item Name
MAMBA D5-7 G30-770 Forward Ball Bearing Turbo Cartridge CHRA

Product Situation
Brand New
VSR Balanced
Heavy duty upgraded performance CHRA

Application
Featured MAMBA D5-7 CHRA going with D5 (5+5) turbine wheel makes your turbo spool faster and reduce back pressure to support higher top end HP, and 7+7 performance LEP designed billet compressor wheel supports more air flow than factory one or others.
Fits MAMBA & Garrett Forward G30-770 Turbo.
Fits Garrett turbo #: 880704-5005S, 880704-5006S.
Fits Garrett supercore #: 880693-5002S.
Fits engine: 2.0L ~ 3.5L
HP Support: 480~800HP
Max boost: 3.4Bar / Recommend 1.5~1.8bar for daily street car.

Spec
Compressor wheel: 57.5/71.4/65T/7+7 Blade/LEP Designed/Forward
Turbine wheel: 55.0/60.0/84T/D5 Designed/5+5 Blade/Forward

Bearing
Ceramic dual ball bearing
Inconel cage

Cooling
Oil & water-cooled

Kit Includes
1 x MAMBA D5-7 G30-770 ball bearing CHRA.
1 x 4AN adapter fitting kit (1.0mm restrictor).
2 x 14mm banjo bolt kit.
2 x 14mm to 6AN adapter fitting kit
1 x 10AN oil drain flange kit

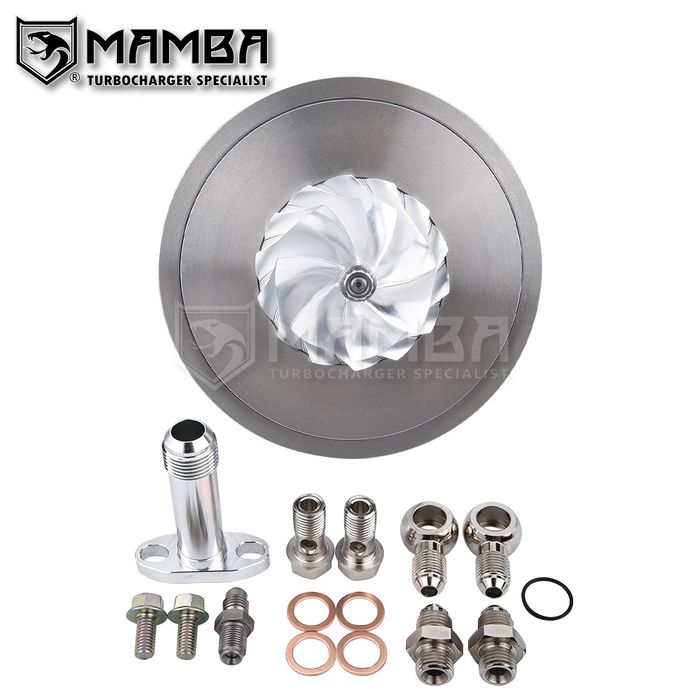

Everything shown in first picture is included.

Made By
MAMBATEK
