P/N
002-0167

Item Name

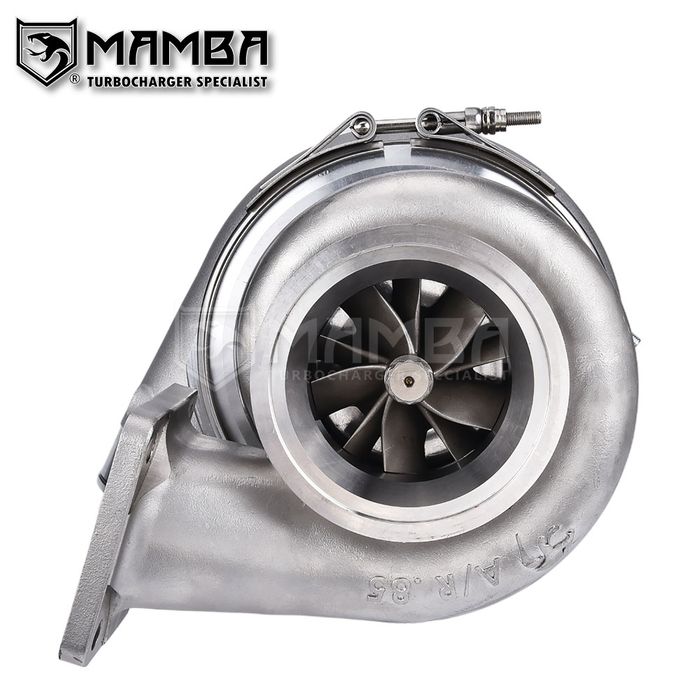

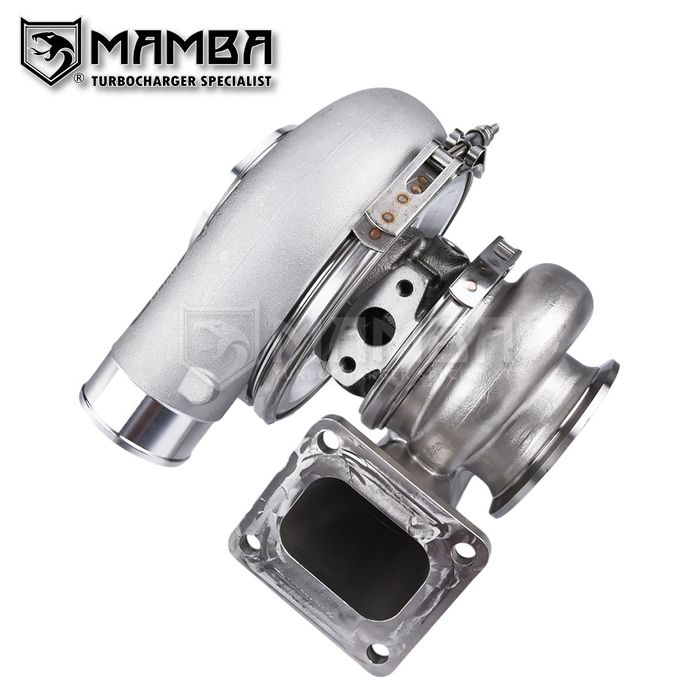

MAMBA MGD D5-10 4” G40-1150 Ball Bearing Turbocharger + .85 T4 V-Band Turbine Housing

Product Situation
Brand new

Application
Featured MAMBA MGD D5 (5 Long + 5 Short Blade, Dual 5) turbine wheel spools faster and reduces back pressure to support higher top end HP.
Replace and Upgrade MAMBA MGD / Garrett G40-1150 Ball Bearing with .85 T4 V-Band Turbine Housing.
Replace and upgrade Garrett turbo P/N: 757707-0032.
Support 500~1150HP
Displacement: 2.0~6.0L

Spec
Compressor wheel: 71.0/88.0/65T/10+0 Blade/Point Milling designed/2618 Billet
Turbine wheel: 70.0/77.0/84T/5+5 Blade/D5 Design/713C Inconel
Compressor Housing Inlet OD: 4” / 101.6 mm
Compressor Housing Outlet OD: 2.5” / 63.5 mm
Compressor housing A/R: .80
Turbine Housing Inlet: Standard T4 Single Entry
Turbine Housing Outlet: 3.5” V-Band
Turbine housing A/R: .85

Bearing
Ceramic ball bearing
Inconel cage

Cooling
Oil & water-cooled

Kit Includes
1 x MAMBA MGD D5-10 4” G40-1150 ball bearing turbocharger
1 x PTFE Turbo oil feed line kit
2 x PTFE Turbo water line Kit
1 x NBR Turbo oil return line Kit
1 x SUS304 turbine inlet gasket
1 x 3.5”V-Band Flange with Clamp Set
4 x 10mm SCM440 Stud Kit (turbine inlet)

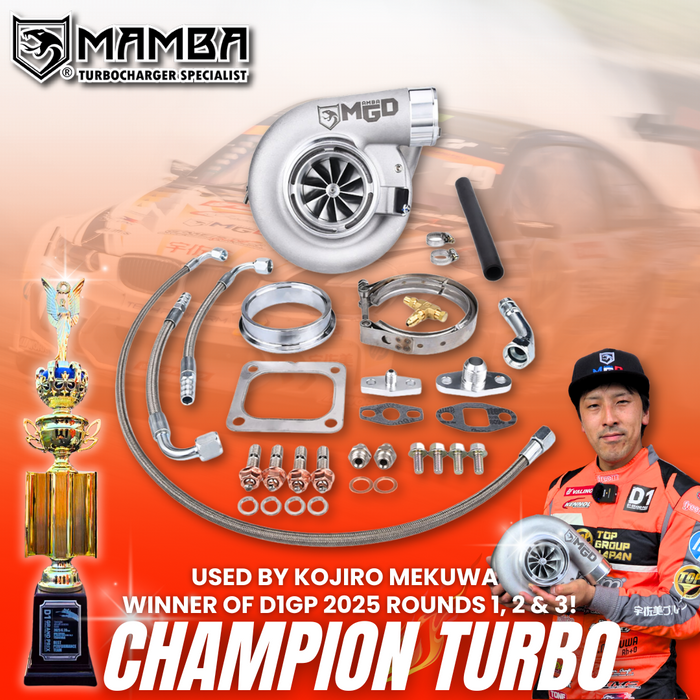

Everything shown on first picture is included.

Made By
MAMBATEK
