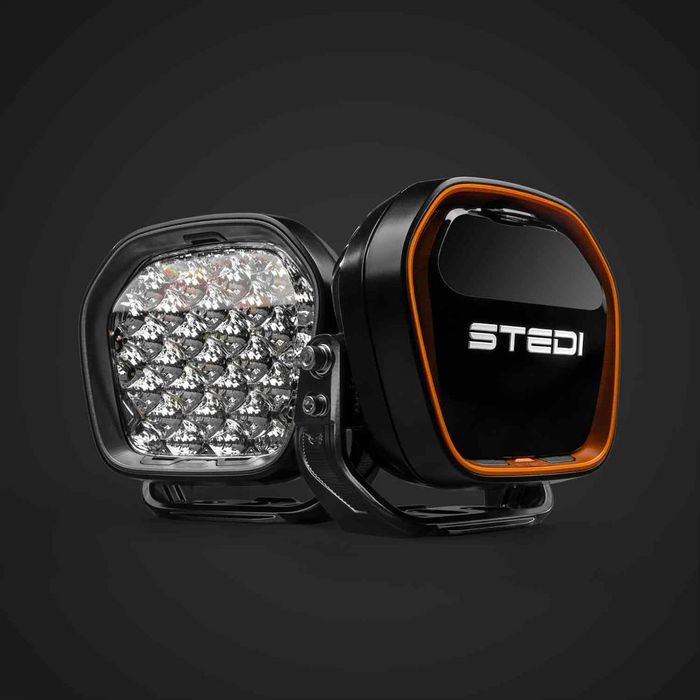

Type-X™ EVO 7 Inch LED Driving Lights (Pair)

STEDI Hall: Hall 4: Boulevard Pavilion Stand: BP262

To us, evolution means more than just gradual improvement or progression, it is about the whole process; substantial refinement in the pursuit of excellence. One year after the announcement of the TYPE-X™ EVO 8.5” LED Driving Light, we announce the arrival of the TYPE-X™ EVO 7” LED Driving Light. With one eye on the future, we have set our sights beyond typical shapes with the creation of TYPE-X™ EVO, redefining auxiliary driving lights as we know them.

Tech Specs

LED 32 x CREE XP20 LED (each)
RAW LUMENS 8,200 (each)
TESTED LUMENS 7,000 (each)
AMP DRAW 8.5A @ 12v / 4.25A @ 24V (each)
POWER DRAW 95W
CANDELA 207,000 Flood (each)
528,000 Spot (each)
BEAM PATTERN

32 x 30° Spread

32 x 4° Pencil Beam

INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT) 5000K
LUMEN MAINTENANCE 30,000 LM-80
VOLTAGE COMPATIBILITY 12v & 24v
WEIGHT 2.35kg (each)
OPERATING TEMPERATURE -40°C to 60°C
PHOTOMETRIC DATA
10 m
50 m
200 m
300 m
625 m 1 Lx (pair flood)
948 m 1 Lx (pair spot)
