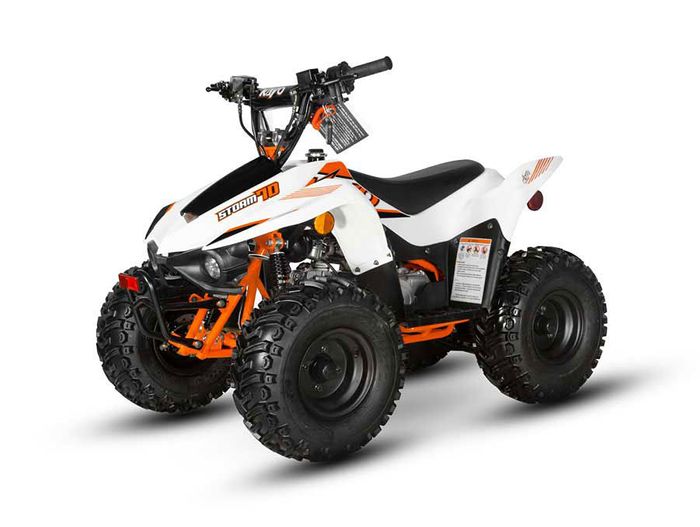

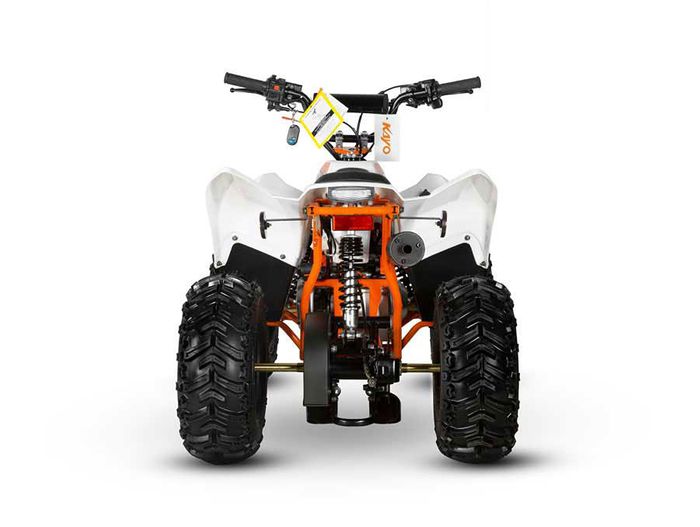

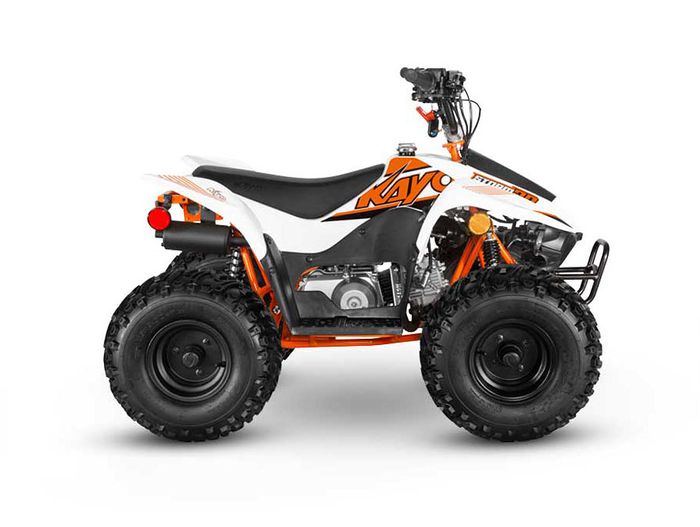

KAYO MOTO AUSTRALIA AY70 QUAD
)
)
)
)
)
)
| Engine | |
|---|---|
| Engine Type: | Single-cylinder, 4-stroke, Air cooling, Full-Auto |
| Displacement: | 72cc |
| Bore*Stroke: | 47mm*41.4mm |
| Compression Ratio: | 8.8 : 1 |
| Max. Power(kw/rpm): | 3.1 : 8000 kw/rpm |
| Max. Torque(N.m/r/min): | 4.5 : 5000 N.m/r/min |
| Fuel System: | Standard Carburetor |
| Starting: | Electric Starting |
| Transmission: | Chain (13T-37T 420#) |
| Ignition: | CDI |
| Chassis / Brake / Wheel | |
| Frame: | Steel Frame – Professional design and processed by KAYO |
| Front shock: | 255mm Non-adjustable |
| Rear shock: | 250mm Adjustable |
| Front Braking: | Disc Brake |
| Rear Braking: | Disc Brake |
| Front Wheel Rim: | Steel 7*4.8AT-3/90 54 |
| Rear Wheel Rim: | Steel 7*4.8AT-3/90 54 |
| Front Tyre: | 7” 16*8-7 |
| Rear Tyre: | 7” 16*8-7 |
| Dimensions and Capacities | |
| Vehicle Size: | 1265*800*880mm |
| Wheel base: | 770mm |
| Seat Height: | 605mm |
| Ground Clearance: | 115mm |
| Dry Weight: | 72kg |
| Fuel Capacity: | 2.1L |
| Packing Size: | 1150*650*610 mm |
